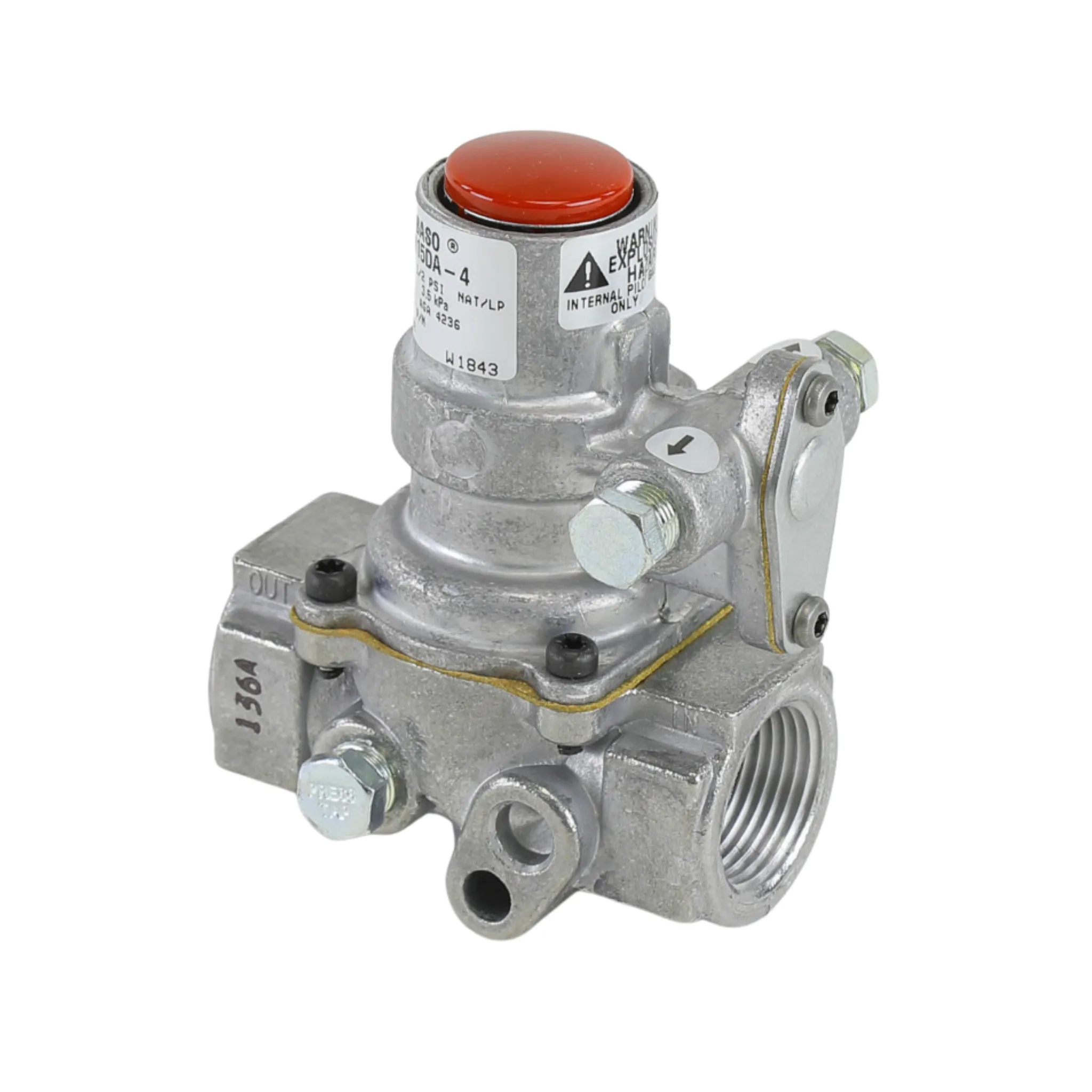

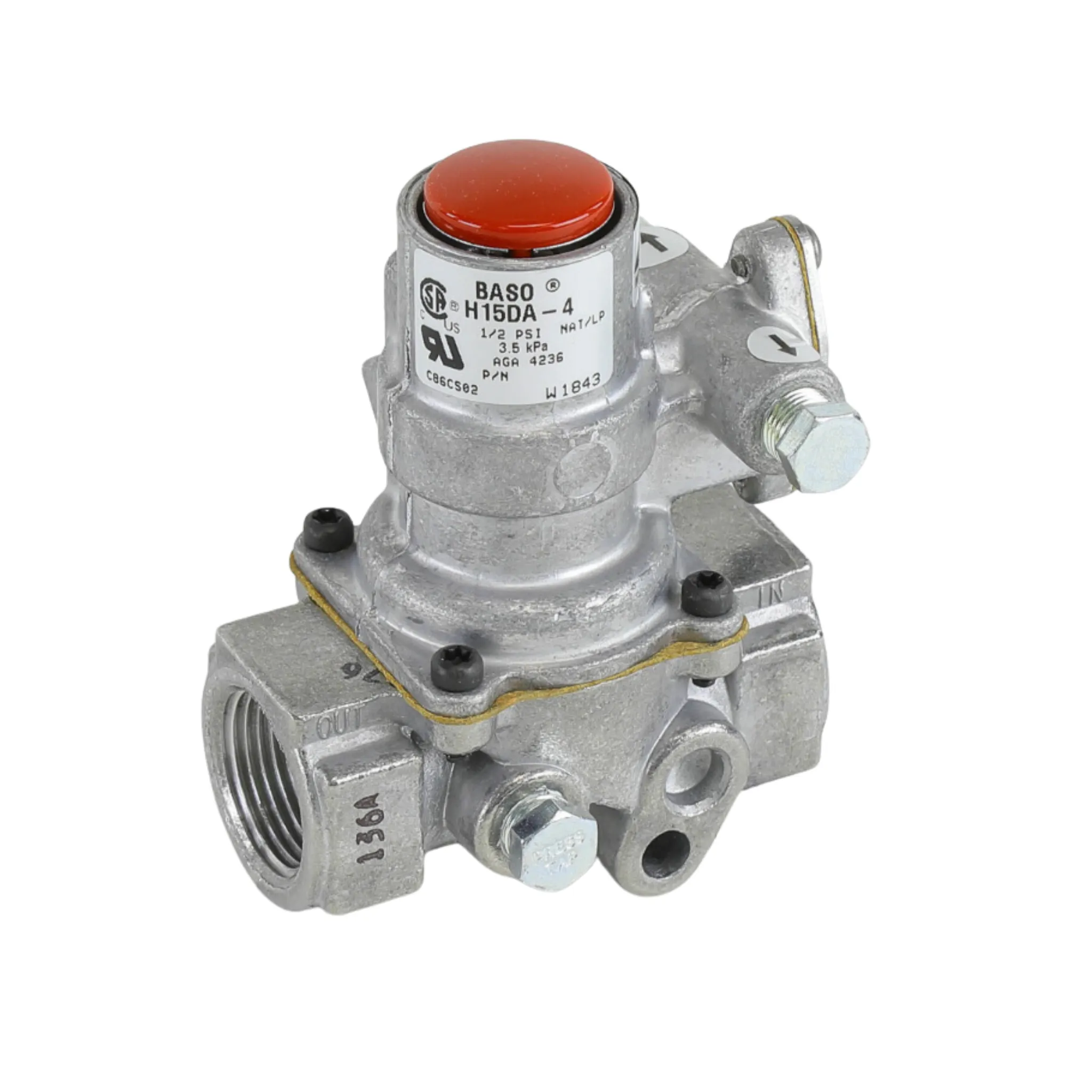

H15 valves are 100% shutoff devices with compact, cast aluminum valve bodies. A rotor B valve is provided as an option for manual adjustment of the pilot flame. The flow interruption feature allows gas to flow only to the pilot during the lighting operation. The H15 Series pilot valves provide safe lighting and complete shutoff of pilot and main burner gas in the event that the flame heating the thermocouple is extinguished. They are designed for standing pilot applications and can be used with natural gas and Liquefied Petroleum (LP) Gas, at pressures up to 0.5 PSI (35 mbar [3.5 kPa]).

Features:
Compact Design – permits installation in restricted applications
Safe Lighting – pilot flow only allowed to the burner during lighting
Easy Operation – simple lighting with use of large reset button
Reliable – proven by thousands of units in service
Optional manual pilot adjust valve for pilot flame adjustment
Natural and LP Gas up to 0.5 PSI with 1/8-27" NPT Pilot Tap Over Inlet, 1/8-27" NPT Pressure Tap on left and right

Specifications:

Manufacturer: BASO
Manufacturer Part Number: H15DA-4
Product Type: Pilot Gas Valve
Type: Automatic Shut-Off
Connection Size: 3/4" NPT
Capacity: 335,000 BTU
Operable Gas Types: Natural Gas, Liquefied Petroleum (LP), LP Gas-Air Mixtures
Permissible Ambient (Surface) Temperature: 32-300 Degree Fahrenheit (High Temp)
Dimensions: 3.6" x 4.6" x 2.5"
Weight: 0.83 lb
